Products



Air Hydraulic Pumps.

Hydra-Matic Machine and Pumps Ltd. has the mission to be the supplier of choice for all users of small air - hydraulic pumps in its class.

We are the low cost, high quality producer of such pumps in North America.

Therefore our products are Air - Hydraulic Pumps as follows:

Model

Control

PSI

(@ 120 psi air pressure)

Oil Capacity

(Cubic inch)



HM 10

Foot (portable)

10,000

90

HM 10 D

Foot (portable)

10,000

140

HM 45

Foot (portable)

4,500

90

HM 45 D

Foot (portable)

4,500

140

HMH 10

Hand (mounted)

10,000

35

  Our Hydra-Matic Pumps are made from aluminium alloys, brass and steel, with some standard hardware components that allow for fast replacement when needed. All pumps have a 1/4 NPT air port and a 3/8 NPT hydraulic adaptor port. This allows our pumps to be used with any suitable accessory or equipment, as long as the correct connectors or quick couplers are used.

Special orders can be accommodated for HMH pumps for larger oil capacity or 4,500 psi hydraulic pressure output.

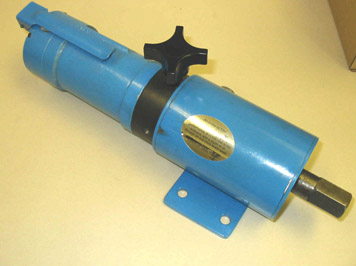

Model HM-10 Foot Controlled Pump
Model HMH-10 Hand Controlled Pump



All our Hydra-Matic Pumps are available through our
network of distributors across North America.



Machined Parts

Since we are also a Machine Shop, we produce machined parts for OEMs in diverse industries such as:

  • Automotive
  • Industrial Equipment
  • Construction Equipment.
  • Tooling
  • Fixturing
