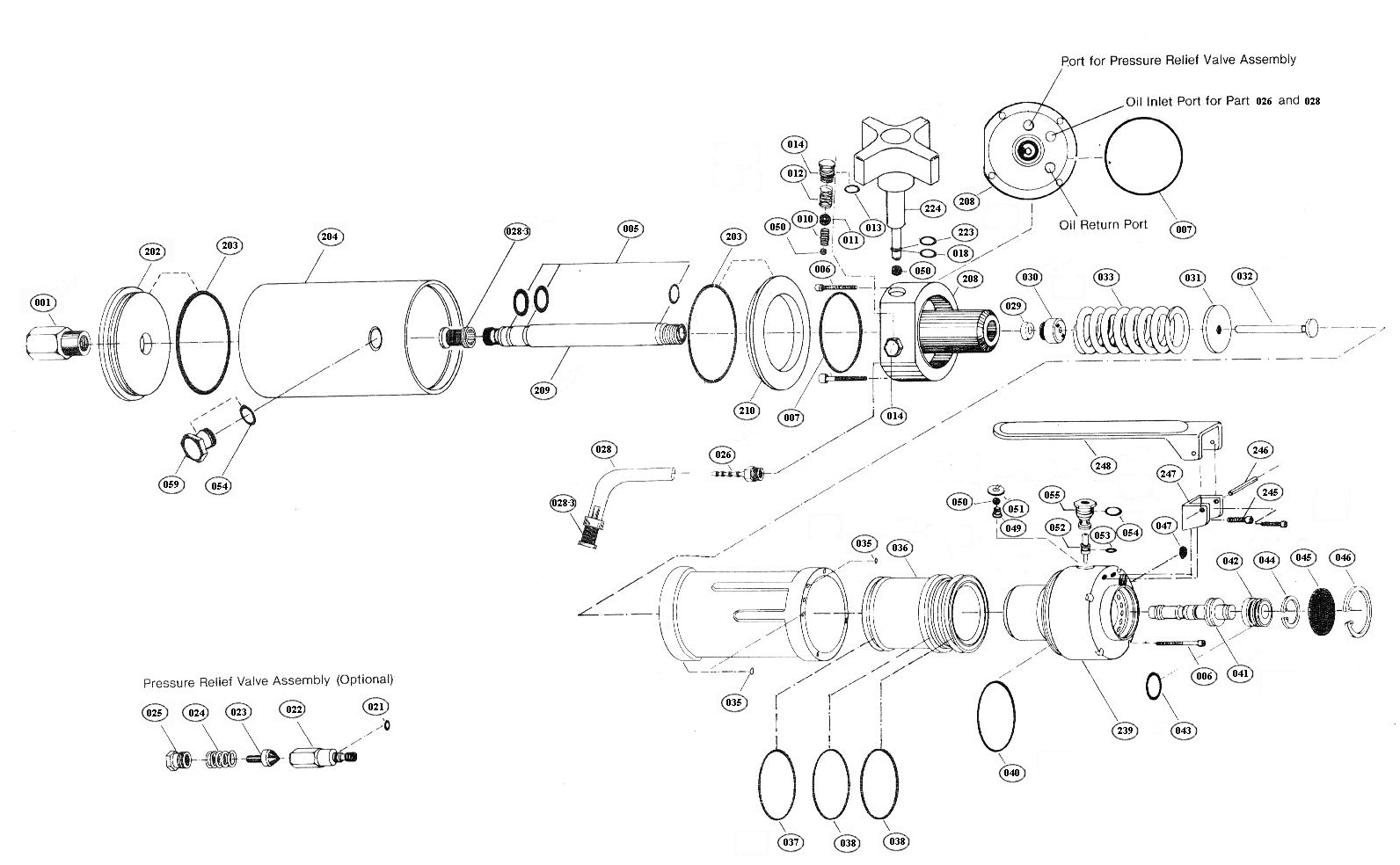

Drawing

HMH10 Hand-Controlled Pump
(drawing under part-list)

Part# Description Qty
001 Hose adapter 1
005 O-ring 5/8 OD x 7/16 ID 3
006 8-32 x 1-1/4 SHCS 8
007 O-ring 2-3/8 OD x 2-1/8 ID 1
008 Ball plug 2
009 O-ring 1/2 OD x 5/16 ID (spool) 5
010 Spring 1/4 dia x 3/8" lg. 1
011 3/8" Ball valve 1
012 Spring 3/8 x 1" lg. 1
013 O-ring 9/16 OD x 7/16 ID 1
014 Hex plug  1
015 O-ring 7/8 OD x 11/16 ID (spool) 1
018 O-ring 3/8 OD x 1/4 ID Buna 2
021 O-ring 3/8 OD x 1/4 ID  1
022 Pressure relief valve body 1
023 Pressure relief valve  1
024 Spring 1/4 ID x 15/32 OD x 3/4" lg. 1
025 Hex plug (with nylon insert) 1
026 Hose barb (brass) 2
027 Oil return tube 1
028 Oil inlet tube 1
028-2 Aluminum barb 1
028-3 Oil filter 2
029 Hydraulic seal u-cup 1
030 Brass bushing 1
031 Spring cup 1
032 Hydraulic piston 1
033 Spring (1-1/2" dia x 4" lg.) 1
035 O-ring 4.58mm OD x 2.54mm ID 2
036 Pneumatic piston 1
037 O-ring 2-1/2 OD x 2-5/16 ID 1
038 O-ring 5/8 OD x 2-3/8 ID 2
039-1 Brass bushing (short) 1
039-2 Brass bushing (medium) 1
039-3 Brass bushing (long) 1

Part# Description Qty
040 O-ring 2-5/8 OD x 2-1/2 ID 1
041 Spool valve (o-rings not incl.) 1
042 Spool valve retainer 1
043 O-ring 15/16 OD x 13/16 ID 1
044 Retaining ring 1
045 Muffler 1
046 Retaining ring 1
047 Air filter 1
049 Cone spring 1
050 1/4" Ball valve 3
051 Seal 1
052 Trigger (air) 1
053 O-ring 5/16 OD x 3/16 ID 1
054 O-ring 11/16 OD x 1/2 ID 2
055 Air valve body 1
058-2 Temp. o-ring, oil filler cap 1
059 Oil filler plug (breather plug) 1
060 Identification tag 1
061 Rivet 2
062 Advise sticker 1
202 Reservoir retainer plate 1
203 O-ring 3-1/4 OD x 3" ID 2
204 Reservoir body 1
208 Hydraulic body with 2 plugs 1
209 Extension tube 1
210 Reservoir adaptor plate 1
222 Hand knob 1
223 Back-up washer 1
224 Release valve stem 1
225 Spring pin 1/8 dia x 1" 1
234 Cylinder 1
239 Pneumatic body with bushings 1
245 8-32 x 1/4 SHCS 2
246 Spring pin 1/8 dia x 1-1/4" 1
247 Bracket 1
248 Hand lever 1
